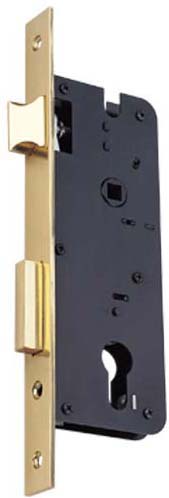

CS-8550

Finishes available: SB, SS

Specifications: 50mm backset

Functions available: ET

Packagings available: Box

Materials: Steel

Keyways available:

Classifications: Mortise lock case

graphic of dimension

Installation Instructions

* A mortise lockcase applied to 20000 Series mortise lock.
* Stainless steel or brass latch front of 7/8" x 9-7/16"(23 x 240mm).
* 7/16"(11mm) solid brass or stainless bevel latch.
* 13/16"(20mm) stainless or solid brass deadbolt.
* 5/16"(8mm) solid brass spindle hub.
* 3-5/16"(85mm) centerline.
* 2"(50mm) backset.
* Other backsets include 1-9/16"(40mm), and 2-3/8"(60mm).
