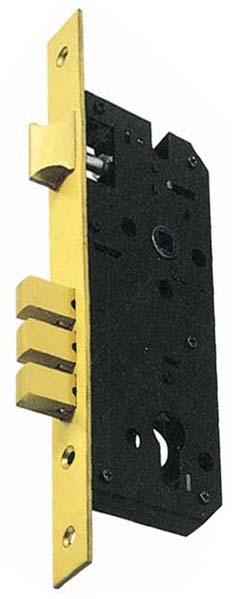

CS-8545

Finishes available: PB, AC, AB, SB, SC, SN, CP

Specifications: 45mm backset

Functions available: ET

Packagings available: Box

Materials: Steel

Keyways available:

Classifications: Mortise lock case

graphic of dimension

Installation Instructions

* A mortise lockcase applied to 20000 Series mortise lock.
* Stainless steel or brass latch front of 7/8" x 9-7/16"(23 x 240mm).
* 7/16"(11mm) solid brass or stainless bevel latch.
* 13/16"(20mm) stainless or solid brass triple deadbolts.
* 5/16"(8mm) solid brass spindle hub.
* 3-5/16"(85mm) centerline.
* 1-3/4"(45mm) backset.
