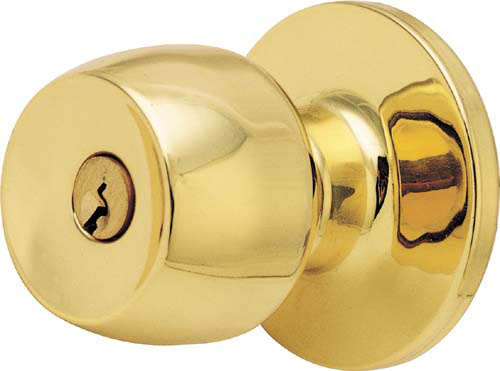

A598ETPB

A598

Finishes available: SS, SSP, PB, AC, AB, SB, SC, SN, CP

Specifications: 60/70mm backset

Functions available: ET, BK, PS, DT

Packagings available: Box, clamshell

Materials: Stainless steel, brass

Keyways available: Yale, Kwikset, Schlage, Lockwood, Weiser.

Classifications: Tubular knobset

graphic of dimension

Installation Instructions

* An ANSI Grade 3 tubular knobset guaranteed for 200,000 cycles.
* Passed 96 hours salt spray test for finish.
* 5 pin tumbler cylinder, brass plug with 3 nickel-plated brass keys.
* 1/2"(12mm) throw latch. Dead locking for keyed function.
* 2-1/4"(57mm) strike as standard.
* Backset adjustable between 2-3/8" and 2-3/4"(60 and 70mm).
* Door thickness ranges from 1-3/8" to 2-3/16"(35mm to 55mm).
* Extra thickness up to 2-9/16"(65mm) optional.
* Functions available in Entrance, Privacy, Passage and dummy.
* Finish available for PB, AC, AB, CP, SC, SN and others.
