5902ETPB

5902

Finishes available: PB, AC, AB, SB, SC, SN, CP

Specifications: 60/70mm backset

Functions available: ET, BK, PS, DT

Packagings available: Box, clamshell

Materials: Stainless steel, brass

Keyways available: Yale, Kwikset, Schlage, Lockwood, Weiser.

Classifications: Weiser Type Tubular knobset

graphic of dimension

Installation Instructions

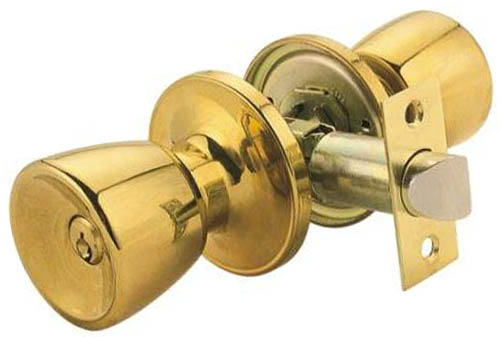

* A tubular knobset of a Weiser type structure, an easy to install product for residential use.
* Guaranteed for 150,000 life cycles.
* Solid steel chassis and latch case, zinc plated for corrosion resistance.
* Exposed trim of one piece knob is of brass material.
* 5 pin tumbler cylinder, brass plug with 3 nickel-plated brass keys.
* 1/2"(12mm) throw latch. Dead locking for keyed function.
* 2-1/4"(57mm) strike as standard.
* Backset adjustable between 2-3/8" and 2-3/4" (60 and 70mm). 4 way drive-in latch optional.
* Door thickness ranges from 1-3/8" to 2-3/16"(35mm to 55mm). Extra thickness up to 2-9/16"(65mm) optional.
* Functions available in Entrance, Privacy, Passage and dummy.
* Finish available for PB, AC, AB, CP, SC, SN and others.
