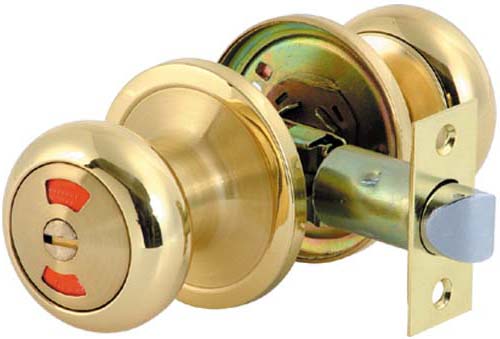

592I-PBSB

592I

Finishes available: SS, SSP, PB, AC, AB, SB, SC, SN, CP

Specifications: 60/70mm backset

Functions available: BK

Packagings available: Box, clamshell

Materials: Stainless steel, brass

Keyways available:

Classifications: Tubular knobset

graphic of dimension

Installation Instructions

* A tubular knobset of a Weiser type structure, an easy to install product for residential use.
* Guaranteed for 150,000 life cycles.
* Solid steel chassis and latch case, zinc plated for corrosion resistance.
* Exposed trim is either wrought stainless steel or brass.
* Serves as privacy function with an indicator.
* 1/2"(12mm) throw latch.
* 2-1/4"(57mm)strike as standard.
* Backset adjustable between 2-3/8" and 2-3/4" (60 to 70mm). 4 way drive-in latch optional.
* Door thickness ranges from 1-3/8" to 2-3/16"(35mm to 55mm). Extra thickness up to 2-9/16"(65mm) optional.
* Finish available for PB, AC, AB, CP, SC, SN and others.
