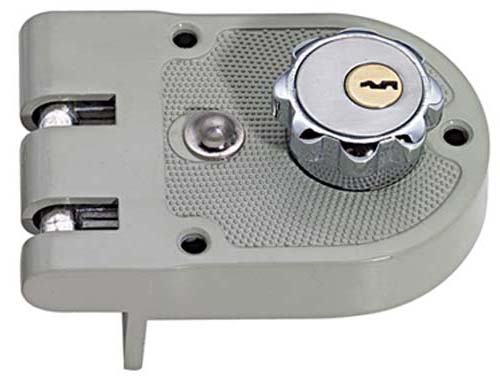

H102APC

H102A

Finishes available: GL, PC, SN, PB, AB

Specifications: 60mm backset

Functions available: Double cylinder

Packagings available: Box, clamshell

Materials: Zinc

Keyways available: Yale, Kwikset, Schlage, Lockwood, Weiser, Cross keys

Classifications: Standard deadlock

graphic of dimension

Installation Instructions

* An elegant and dependable security products, suitable for installing on exterior wood doors.
* Vertical claw locking mechanism provides a stronger safeguard feature against door picking.
* Right angle strike as standard for doors opening inward, flat strike for door opening outward, though such opening not recommended.
* Key and inside thumbturn operates latch.
* Bolt automatically activates when closing the door.
* Slide button deadlocks latch. 5-pin brass tumbler cylinder.
* Various keyways such as Yale, Kwikset, Weiser, Lockwood are available.
* 2-3/8"(60mm) backset.
* Reversible for left or right hand doors.
* Door thickness ranges from 1-1/4" to 2"(32mm to 50mm).
