H101PC

H101

Finishes available: GL, PC, SN, PB, AB

Specifications: 60mm backset

Functions available: Single cylinder

Packagings available: Box, clamshell

Materials: Zinc

Keyways available: Yale, Kwikset, Schlage, Lockwood, Weiser

Classifications: Standard deadlock

graphic of dimension

Installation Instructions

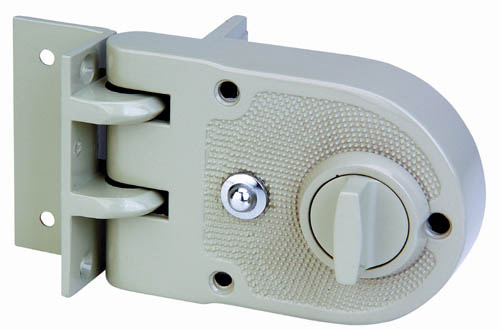

* A zinc die-cast deadlock is an elegant and dependable security products, suitable for installing on exterior wood doors.
* Vertical claw locking mechanism provides a stronger safeguard feature against door picking.
* Right angle strike as standard for doors opening inward, flat strike for door opening outward, though such opening not recommended.
* Key from outside or thumbturn from inside operates latch.
* Bolt automatically activates when closing the door. Auto locking mechanism can be released by inside thumbturn.
* Push button deadlocks the latch.
* 5-pin brass tumbler cylinder.
* Various keyways such as Yale, Kwikset, Weiser, Lockwood are available.
* 2-3/8"(60mm) backset.
* Reversible for left or right hand doors.
* Door thickness ranges from 1-1/4" to 2"(32mm to 50mm).
