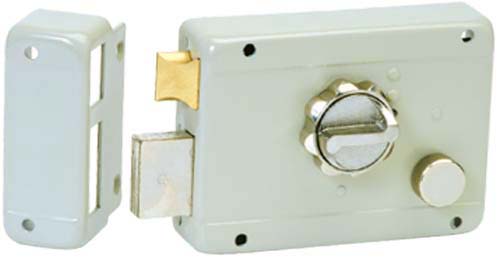

9237PC

9237

Finishes available: PC, BL, BRN

Specifications: 60mm backset

Functions available: Single cylinder

Packagings available: Box

Materials: Steel

Keyways available: Yale, cross key, E-type key

Classifications: Standard security rimlock

graphic of dimension

Installation Instructions

* A standard security rimlock for exterior wood and metal door.
* 1/2"(13mm) bevel latch controlled by turn ring on inner cylinder, can be locked by small turn button at retracted or extended position.
* 2-throw laminated steel deadbolt of 7/8"(22mm) extension operated by key. The central thumbturn can only operate the first throw. The second throw by key will disable thumbturn operation, enabling deadlocking inside mechanism from outside.
* Lock case in steel as standard.
* 2-3/8"(60mm) backset.
* Reversible for left or right hand doors.
* High security cylinders include cross key, dimple key and combo key.
* Door thickness ranges from 1-3/16" to 2"(30mm to 50mm).
