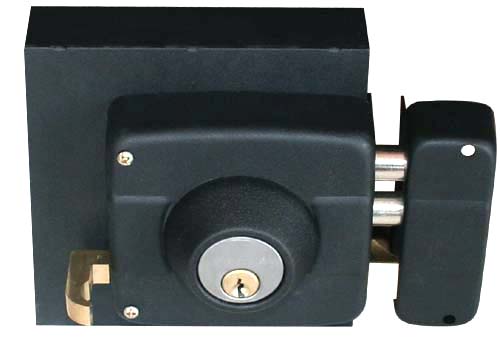

ST9337GB-BL
ST9337GB
Finishes available: BL
Specifications: 50mm backset
Functions available: Double cylinder
Packagings available: Box, clamshell
Materials: Steel
Keyways available: Yale, Cross key, Dimple key
Classifications: Standard rimlock





graphic of dimension
Installation Instructions

Product
* A security rimlock supplied with lock box, which can directly be welded onto bar gate.
* Backset of 2"(50mm).
* Lock case of steel structure.
* 7/8"(22mm) twin cylindrical steel bolts operated by keys from both sides.
* 5/8"(15mm) brass bevel latch operated by hand pull.
* Incorporated cylinder for 40mm door thickness with Dimple, Kaba, Cross key and other keyway options.
* Handing fully reversible.
* Door thickness ranges from 1-3/16" to 2"(30mm to 50mm).
