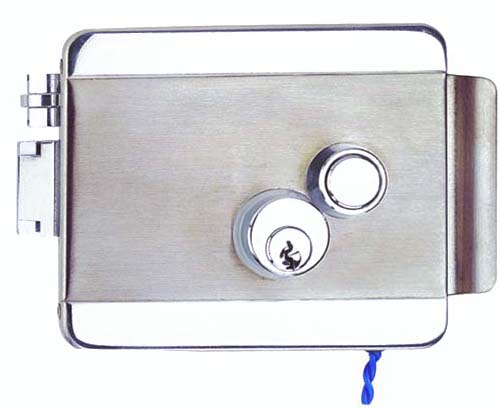

9437SS

9437

Finishes available: SS

Specifications: 45~70mm backset

Functions available: Single cylinder, double c

Packagings available: Box, clamshell

Materials: Stainless steel

Keyways available: Yale keys

Classifications: Electric lock

graphic of dimension

Installation Instructions

* An electric rimlock with a desirable mechanical structure and electronic features.
* Stainless steel lock case.
* Adjustable backset ranging from 1-3/4" to 2-3/4"(45 to 70mm).
* Wheel structured anti-friction deadlocking activator.
* Activated by 12 volt DC current.
* Inner support frame for strike box to enhance strength and appearance.
* Latch spring adjustable for proper door closing force.
* Solid brass cylinder with Yale keyway or other security cylinders.
* Advisable to specify handing and door swinging direction.
* Door thickness ranges from 1-3/8" to 2-3/8"(35mm to 60mm).
Functions include:
* Inner release only: Key from outside or inner button releases latch.
* Inner release plus cylinder: Key from inside locks and unlocks inner button but has no effect for the electric release mechanism or key from outside.
* Inner cylinder only: Key to either cylinder unlocks door.
