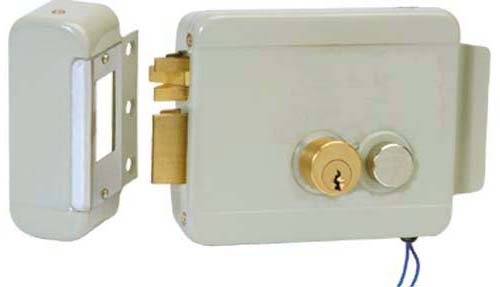

9436PC

9436

Finishes available: PC

Specifications: 60mm backset

Functions available: Single cylinder, double c

Packagings available: Box, clamshell

Materials: Steel

Keyways available: Yale keys

Classifications: Electric lock

graphic of dimension

Installation Instructions

* An electric strike commonly used for residential and commercial purpose.
* Activated by 24 volt DC current.
* Anti-friction deadlocking latch structure.
* Inner support frame for strike box to enhance strength and appearance.
* Key from outside and inner button release latch.
* Key from inside locks and unlocks inner button but has no effect for the electric release mechanism and outside key operation.
* Latch spring adjustable for proper door closing force.
* Solid brass cylinder with Yale keyway or other security cylinders.
* Advisable to specify handing and door swinging direction.
* Backset of 2-3/8"(60mm).
* Door thickness ranges from 1-3/16" to 2"(30mm to 50mm).
