7331SS

7331

Finishes available: SS

Specifications: 60mm backset

Functions available: Double cylinder

Packagings available: Box

Materials: Stainless steel

Keyways available: Yale, Cross keys, Dimple key, Snake key

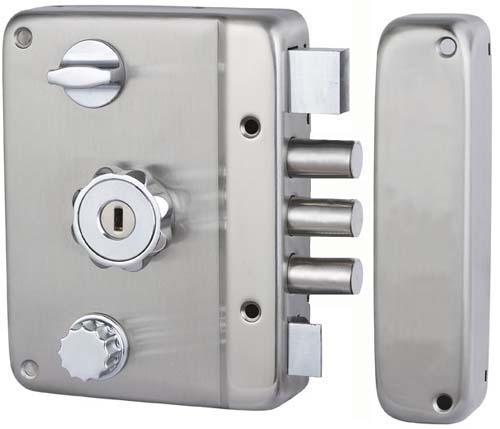

Classifications: High security rimlock

graphic of dimension

Installation Instructions

* An extra sized high security rimlock desired for residential and commercial use.
* All exposed parts and latches are of stainless steel structure.
* Furnished with installation back plate for anti-picking and easy replacement especially for metal doors.
* Main lock case has the dimension of 4-1/2" x 6"(415 x 150mm).
* Triple cylindrical deadbolts of 7/8"(22mm) extension operated by key from both sides.
* Lower thumbturn activates bevel latch and holds it at retracted or extended position.
* Supplementary deadbolt controlled by turn button.
* Solid brass cylinder with dimple, Kaba, Cross key, snake key and other hi-security keyways.
* Handing fully reversible.
* Door thickness ranges from 1-3/16" to 2-3/8"(30mm to 60mm).
