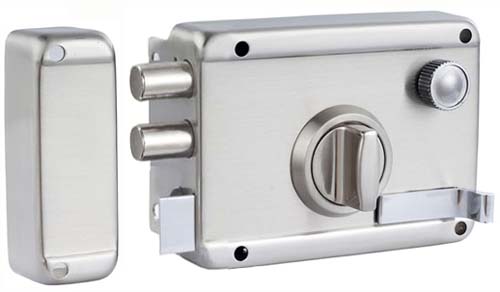

9331T-SS
9331T
Finishes available: SS
Specifications: 60mm backset
Functions available: Single cylinder
Packagings available: Box
Materials: Steel
Keyways available: Yale, Kaba, Cross, Dimple
Classifications: Standard security rimlock





graphic of dimension
Installation Instructions

Product
* A standard security rimlock for exterior wood and metal door.
* Supplied with dimple key cylinder as standard. Other cylinder types optional.
* Lock case in stainless steel as standard. Other materials such as brass or steel optional.
* Turn button holds bevel latch in retracted or extended position, independent from key operations.
* Solid brass bevel latch of 1/2"(12mm) extension, activated by key outside and inner slide button.
* 7/8"(20mm) twin deadbolts activated by key outside or thumbturn from inside.
* Advisable to specify handing, but applicable to different handing.
* Door thickness ranges from 1-3/16" to 2"(30mm to 50mm).
