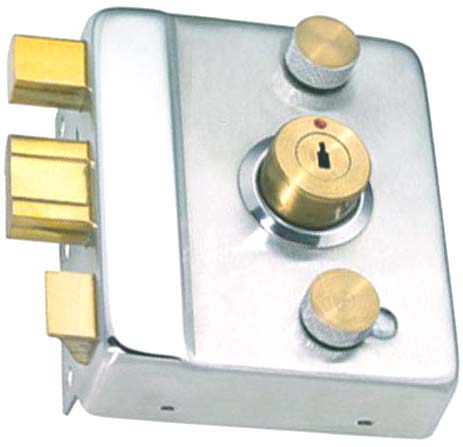

9203SS

9203

Finishes available: SS

Specifications: 60mm backset

Functions available: Double cylinder

Packagings available: Box

Materials: Stainless steel

Keyways available: Yale, Cross keys, E-type key, Dimple key.

Classifications: High security rimlock

graphic of dimension

Installation Instructions

* A desired security product for exterior doors for residential and commercial use.
* All exposed parts are of stainless steel structure.
* 7/8"(22mm) brass deadbolt operated by keys from both sides.
* Bevel latch operated by thumbturn, which holds the former at extended or retracted positions.
* Supplementary deadbolt controlled by turn button for extra inner security.
* Solid brass cylinder with dimple, Kaba, Cross and other hi-security keyways.
* Handing fully reversible.
* Door thickness ranges from 1-3/16" to 2"(30mm to 60mm).
