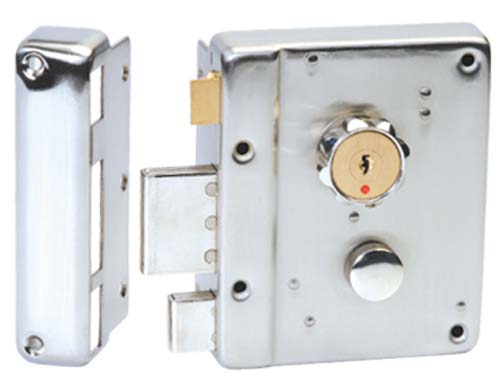

9202CP

9202

Finishes available: CP, SN

Specifications: 60mm backset

Functions available: Double cylinder

Packagings available: Box

Materials: Steel

Keyways available: Yale, Cross keys, E-type key, Dimple key, Combo key

Classifications: High security rimlock

graphic of dimension

Installation Instructions

* A high security rimlock for exterior wood and metal door.
* 1/2"(13mm) bevel latch controlled by turn button incorporated with cylinder.
* Extra wrought steel deadbolt of 3/4"(19mm) extension operated by turn button.
* Main 2-throw steel laminated deadbolt of 1-1/4"(22mm) activated by key and back thumbturn, which can be locked by interior cylinder.
* Lock case in steel as standard.
* Reversible for left or right hand doors.
* High security cylinder include cross key, dimple key and E type key.
* Door thickness ranges from 1-3/16" to 2"(30mm to 50mm).
* Common finishes are CP and SN.
