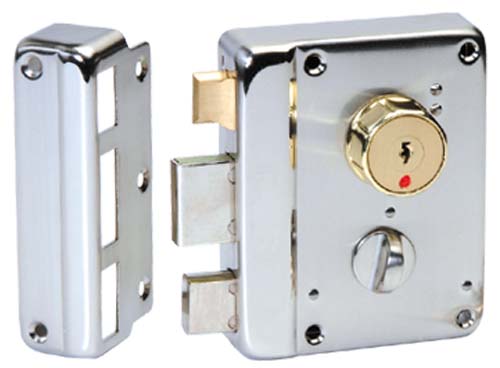

9201CP

9201

Finishes available: CP

Specifications: 60mm backset

Functions available: Double cylinder

Packagings available: Box

Materials: Steel

Keyways available: Yale, Cross keys, E-type key, Dimple key, Combo key.

Classifications: High security rimlock

graphic of dimension

Installation Instructions

* A high security rimlock for exterior wood and metal door.
* 1/2"(13mm) bevel latch controlled by turn button incorporated with cylinder.
* Extra steel deadbolt of 3/4"(19mm) extension by thumbturn.
* Main 3-throw steel laminated deadbolt of 1-1/4"(32mm) activated by key and back thumbturn, which can be locked by interior cylinder.
* Lock case in steel as standard. Stainless steel optional upon request.
* Reversible for left or right hand doors.
* Door thickness ranges from 1-3/16" to 2"(30mm to 50mm).
* Common finishes are CP and SN.
