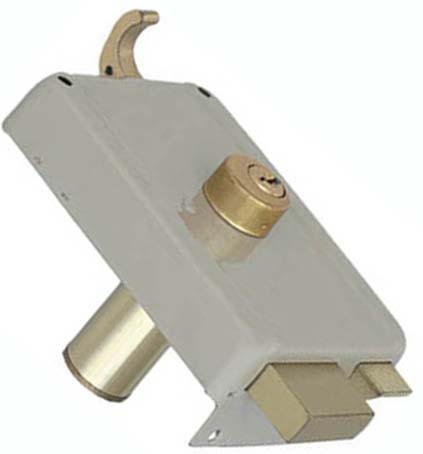

9342PC

9342

Finishes available: PC, BL, BRN

Specifications: 60mm backset

Functions available: Double and incorporated c

Packagings available: Box

Materials: Steel

Keyways available: Yale, Kwikset, Schlage, Lockwood, Weiser

Classifications: Standard security rimlock

graphic of dimension

Installation Instructions

* An economical but durable security products for exterior doors, suitable for installing on both wood and metal materials.
* Bevel latch operated by hand pull; triple throw deadbolt of 1-1/4"(32mm) extension by key from either sides.
* 5-pin tumbler outer cylinder and 2-pin inner cylinder, brass plug with 3 nickel-plated brass keys.
* Reversible for right or left hand doors.
* Yale keyway as standard. Various other keyways optional.
* Incorporated cylinder as standard fitting door thickness up to 2"(50mm), normal cylinder optional.
* Door thickness ranges from 1-3/16" to 2"(30mm to 50mm).
* Various lacquering or plating finishes optional.
