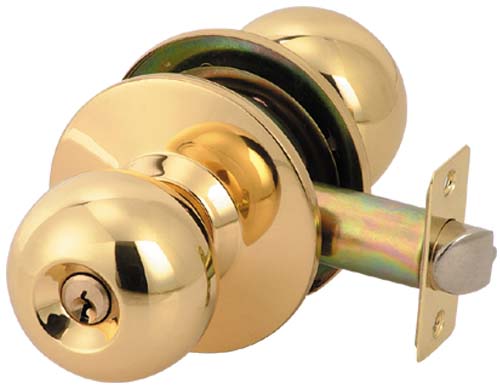

5801ETPB

5801

Finishes available: SS, SSP, PB, AC, AB, SB, SC, SN

Specifications: 70mm backset

Functions available: ET, BK, PS, SR, PT, DC, DT

Packagings available: Box, clamshell

Materials: Stainless steel, brass

Keyways available: Yale, Kwikset, Schlage, Lockwood, Weiser

Classifications: Extra sized cylindrical knobset

graphic of dimension

Installation Instructions

* Guaranteed for 175,000 life cycles.
* Solid steel chassis and latch case zinc plated for corrosion resistance.
* Exposed trim is either wrought stainless steel or brass.
* Rose of 3-1/8"(80mm) diameter covering previous application.
* Knobs are of 2-5/16"(58mm) diameter.
* Heavy-duty cylindrical lock body, threaded on both sides for rose fixing.
* 5-pin tumbler cylinder, 6-pin cylinder optional. Brass plug with 3 nickel-plated brass keys.
* 1/2"(12mm) throw latch. Dead locking for keyed function.
* 2-3/4"(70mm) curved lip strike as standard, 2-1/4"(57mm) and 4-7/8"(124mm) ASA strike optional.
* Keyways available in Yale, Kwikset, Schlage, Weiser and Lockwood.
* Door thickness ranges from 1-3/8" to 2"(35mm to 50mm).
* 2-3/4"(70mm) backset as standard, 2-3/8" (60mm) and various other extended latches optional.
* Handing reversible for right or left hand doors.
* Functions available in Entrance, Bathroom, Passage, Patio, Classroom, Double Cylinder and Dummy.
