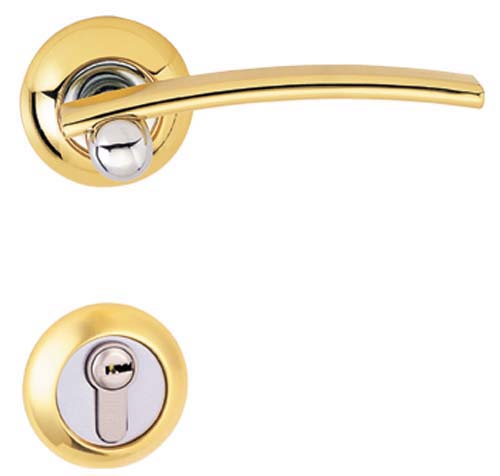

 * A standard European type mortise lock, providing dependable security due to its deadbolt structure and hidden locking mechanism inside the door.
* Zinc die cast for trims.
* Centerline of 3-3/8"(85mm) as standard, 2-13/16"(72mm) optional.
* Optional backsets includes 1"(25mm), 1-3/16"(30mm), 1-3/8"(35mm), 1-9/16"(40mm), 1-3/4"(45mm), 2"(50mm), 2-3/16"(55mm), and 2-3/8"(60mm).
* 5 pin profile brass cylinder of 2-3/4"(70mm) long as standard. 2-3/8"(60mm) long optional.
* Solid brass bevel latch, 7/16"(11mm) extension.
* Solid brass deadbolt of 13/16"(20mm) extension.
* Keyways available for Kwikset, Yale, Weiser, Schlage, Lockwood and dimple key.
* Door thickness ranges from 1-3/8" to 2"(35mm to 50mm). 1-3/16" to 1-9/16"(30mm to 40mm) optional.
* Fully reversible for left and right hand doors.
* Functions available in Entrance, Privacy, Passage, Classroom, Night Latch for common specifications. |
|
