Find: Our website is: http://www.htlock.com

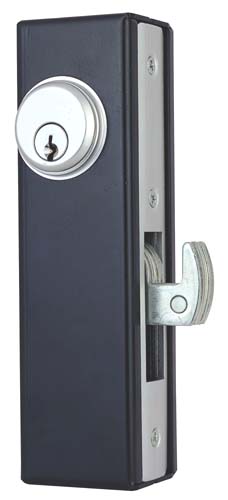

2852GB

Finishes available: SC

Specifications: 29mm backset

Functions available: Single cylinder, double cylinder

Packagings available: Box

Materials: Steel

Keyways available: Schlage

Classifications: Narrow stile mortise lock

graphic of dimension

Installation Instructions

* A narrow stile mortise lock for aluminum sliding door use.
* 360 degree turn of key (or thumbturn) throws or retracts the hookbolt.
* Key can be removed only when bolt is in a positively locked or unlocked position.
* Accepts any standard 1-1/8"(29mm) mortise cylinder or thumbturn from both sides.
* Bolt of five ply laminated steels with center ply hardened defeats any hacksaw attack.
* Radius and bevel armored faceplates available.
* Backset available in 1"(25mm) and 1-1/8"(29mm).
* Swingbolt and night latch versions also available.
* Steel guard box available for 1-1/8"(29mm) backset only.
