CS-ELE

Finishes available: PB, AC, AB, SB, SC, SN

Specifications: 55mm backset

Functions available: ET

Packagings available: Box

Materials: Steel

Keyways available:

Classifications: Mortise lock case

graphic of dimension

Installation Instructions

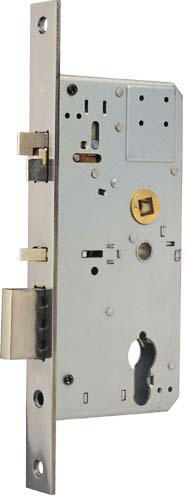

* An electric mortise lock case widely used for access control applications.
* 13/16"(20mm) stainless steel deadbolt is auto activated when door closes.
* Key from outside or inside unlocks door.
* Non handed bevel latch serves as a passage latch in unlocked condition, and as an extra deadlocking latch in locked status.
* Field changeable from Fail Safe to Fail Secure and visa versa.
* Can be ordered for 12 or 24 volt.
* 2-13/16" (72mm) centerline.
* 2-1/8"(55mm) backset.
