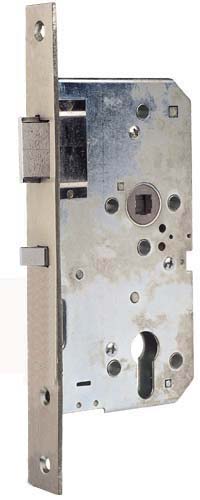

CS-CLSRM

Finishes available: PB, AC, AB, SB, SC, SN, CP

Specifications: 60mm backset

Functions available: Classroom

Packagings available: Box

Materials: Steel

Keyways available:

Classifications: Mortise lock case

graphic of dimension

Installation Instructions

* A classroom mortise lock case for a special security function applied for school and public facilities.
* Single sided cylinder for outside key operation only.
* When unlocked, the lock serves a passage function. In locked condition, outside lever is rigid while the inside one is free for exit.
* Stainless steel latch and deadlocking activator.
* 5/16"(8mm) solid brass spindle hub.
* 2-13/16"(72mm) centerline.
* 2-3/8"(60mm) backset.
