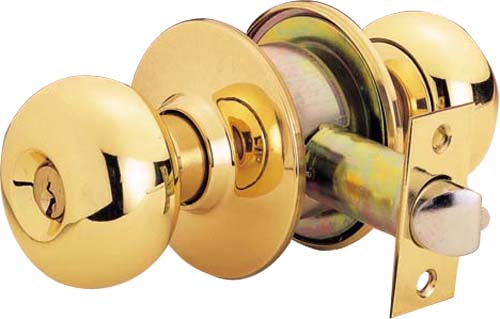

A5791ETPB

A5791

Finishes available: SS, SSP, PB, AC, AB, SB, SC, SN

Specifications: 70mm backset

Functions available: ET, BK, PS, SR, PT, DT

Packagings available: Box, clamshell

Materials: Stainless steel, brass

Keyways available: Yale, Kwikset, Schlage, Lockwood, Weiser

Classifications: Ansi cylindrical knobset

graphic of dimension

Installation Instructions

* ANSI Grade 2 cylindrical knobset.
* Guaranteed for 400,000 cycles.
* UL listed for single point latching.
* Passed 96 hours salt spray test for finish.
* Solid brass 6 pin tumbler cylinder, brass plug with 3 nickel-plated brass keys.
* 1/2"(12mm) throw latch. Dead locking for keyed function.
* 2-3/4"(70mm) strike as standard. ASA strike available upon request.
* 2-3/4"(70mm) backset standard, 2-3/8"(60mm) and other extensions available upon request.
* Door thickness ranges from 1-3/8" to 2"(35mm to 50mm).
* Functions available in Entrance, Privacy, Storeroom, Patio and Passage.
* Finish available for PB, AC, AB, CP, SC, SN and others.
