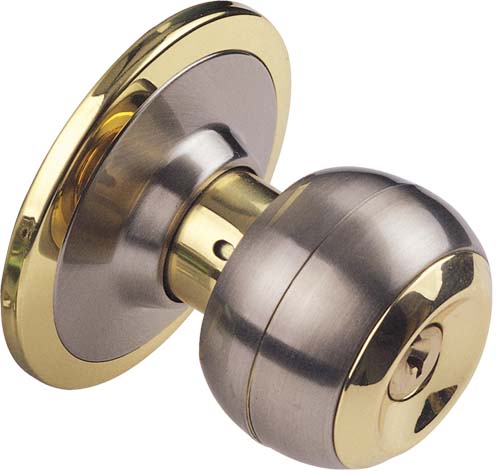

5431ETSNPB

5431

Finishes available: PB, AC, AB, SB, SC, SN, SBCP, SNPB

Specifications: 70mm backset

Functions available: ET, BK, PS, SR, PT, DC, DT

Packagings available: Box, clamshell

Materials: Stainless steel, brass

Keyways available: Yale, Kwikset, Schlage, Lockwood, Weiser

Classifications: Heavy-duty cylindrical knobset

graphic of dimension

Installation Instructions

* A heavy-duty cylindrical lock ideal for home and office use.
* Guaranteed for 150,000 life cycles.
* Solid steel chassis and latch case, zinc plated for corrosion resistance.
* Exposed trim is either wrought stainless steel or brass.
* Rose of 3"(75mm) diameter covering previous application.
* Heavy-duty cylindrical lock body, threaded on both sides for 75mm diameter rose fixing.
* 5-pin tumbler cylinder, 6-pin cylinder optional. Brass plug with 3 nickel-plated brass keys.
* 1/2"(12mm) throw latch. Dead locking for keyed function.
* 2-3/4"(70mm) curved lip strike as standard, 2-1/4"(57mm) and 4-7/8"(124mm) ASA strike optional.
* Keyways available in Yale, Kwikset, Schlage, Weiser and Lockwood.
* Door thickness ranges from 1-3/8" to 2"(35mm to 50mm).
* 2-3/4"(70mm)backset as standard, 2-3/8"(60mm) and various other extended latches optional.
* Handing reversible for right or left hand doors.
* Functions available in Entrance, Bathroom, Passage, Patio, Classroom, Double Cylinder and Dummy.
