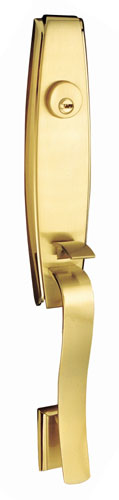

X6A1D21PB

X6A1D21

Finishes available: PB, AC, AB, SB, SC, SN

Specifications: 50mm backset

Functions available: Single cylinder

Packagings available: Box, display box

Materials: Zinc

Keyways available: Yale, Kwikset, Schlage, Lockwood, Weiser, Dimple

Classifications: Mortise handleset

graphic of dimension

Installation Instructions

* A widely adopted security product for commercial use around the world.
* All lock trims are of zinc die cast material.
* Bevel latch is controlled by a lock button switching between deadlocking and passage function. Latch is an anti-friction type eliminating noisy operations, supplemented by a guard bolt to activate deadlocking mechanism.
* 23mm(15/16") stainless steel deadbolt is operated by key or interior thumbturn.
* Anti-panic function: turning interior solid knob will retract all latches simultaneously.
* 65mm(2-9/16") backset.
* Door thickness 48 to 64mm (1-11/16"~2-9/16") as standard.
* Other door thickness available upon request.
* Reinforced armored latch front.
* High security pin-in-pin cylinder as standard, other keyways such as Kwikset, Schlage, Weiser, Yale and Lockwood are available.
