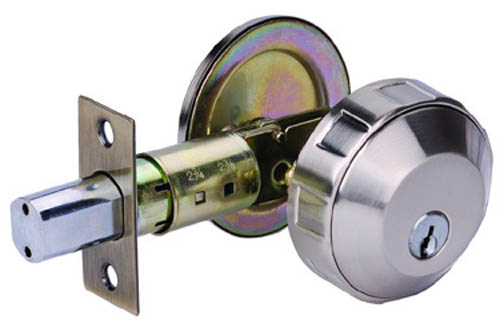

D111SN

D111

Finishes available: PB, AC, AB, SB, SC, SN, CP

Specifications: 60/70mm backset

Functions available: Single cylinder

Packagings available: Box, clamshell

Materials: Zinc

Keyways available: Yale, Kwikset, Schlage, Lockwood, Weiser

Classifications: Medium-duty deadbolt

graphic of dimension

Installation Instructions

* An automatic deadbolt convenient for home and office use.
* Turning the outside lock turn will extend the deadbolt latch, without using the key to lock the door.
* Zinc die cast lock body structure.
* Full one inch throw deadbolt with hardened steel roller insert to resist sawing. 4 way drive-in latch optional.
* 5 pin tumbler mechanism.
* Solid brass cylinder plug, supplied with three nickel plated brass keys.
* Door thickness ranges from 1-3/8" to 2"(35mm to 50mm) for single cylinder; and 1-3/8" to 1-3/4"(35mm to 45mm) for double cylinder.
* Keyways available in Kwikset, Yale and Lockwood.
