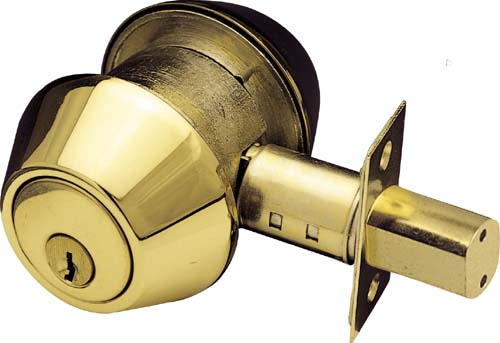

D104R-PB

D104R

Finishes available: SS, SSP, PB, AC, AB, SB, SC, SN

Specifications: 60/70mm backset

Functions available: ET

Packagings available: Box, clamshell

Materials: Stainless steel, brass

Keyways available: Yale, Kwikset, Schlage, Lockwood, Weiser

Classifications: Medium-duty deadbolt

graphic of dimension

Installation Instructions

* A medium deadbolt designed for providing extra security for residential and commercial use.
* Guaranteed for 200,000 cycles.
* Zinc die-cast protective sleeve against picking.
* 5-pin tumbler brass plug readily exchangeable, powder steel high-strength cylinder housing.
* Exposed trim is either stainless steel or brass.
* Full one inch throw deadbolt with hardened steel roller insert to resist sawing. 4 way drive-in latch optional.
* Door thickness ranges from 1-3/8" to 2"(35mm to 50mm) for single cylinder; and 1-3/8" to 1-3/4"(35mm to 45mm) for double cylinder. Spacer ring available for use on 30mm door thickness.
* Keyways available in Kwikset, Schlage, Weiser, Yale and Lockwood.
