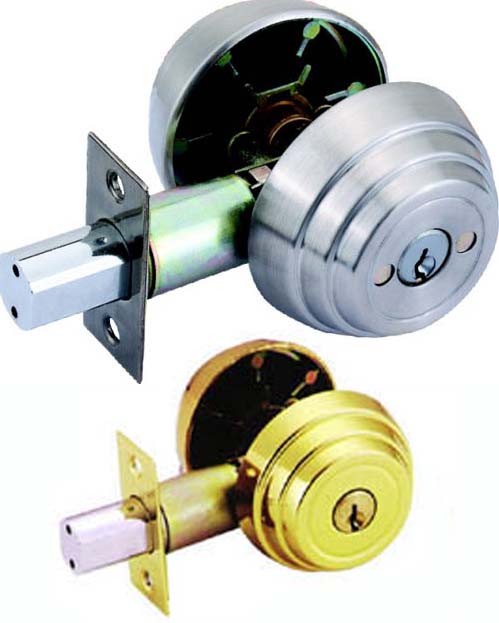

D104C-SN

D104C

Finishes available: PB, AC, AB, SB, SC, SN, CP

Specifications: 60/70mm backset

Functions available: Double cylinder

Packagings available: Box, clamshell

Materials: brass

Keyways available: Yale, Kwikset, Schlage, Lockwood, Weiser

Classifications: Medium-duty deadbolt

graphic of dimension

Installation Instructions

* An innovated deadbolt designed for providing inner door security for residential and office use.
* Self-closing screw holes in locked status to achieve interior security for double cylinder deadbolt.
* Zinc die cast inner shell with brass cover to combine solid structure and desired appearance.
* Full one inch throw deadbolt with hardened steel roller insert to resist sawing. 4 way drive-in latch optional.
* 5 pin tumbler mechanism.
* Solid brass cylinder, supplied with three nickel plated brass keys.
* Door thickness ranges from 1-3/8" to 2"(35mm to 50mm)
* Spacer ring available for use on 30mm door thickness.
* Keyways available in Kwikset, Yale and Lockwood. Other keyways available with solid brass cylinder.
