560-40PC

560-40

Finishes available: PC, PB, AC, AB, SB, SC, SN, CP, PN

Specifications: 40mm backset

Functions available: Single cylinder

Packagings available: Box

Materials: Zinc

Keyways available: Yale, Kwikset, Schlage, Lockwood, Weiser, Dimple

Classifications: Night latch

graphic of dimension

Installation Instructions

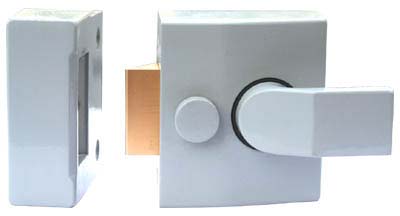

* A standard zinc die cast rimlock for interior wood and metal doors.
* Lock case of zinc die cast material.
* Latch operated by key and handle.
* Slide button can retain latch in retracted or extended positions.
* 5-pin brass tumbler cylinder.
* Various keyways such as Yale, Kwikset, Weiser, Lockwood are available.
* 1-9/16"(40mm). 2-3/8"(60mm) backset optional.
* Reversible for left or right hand doors.
* Door thickness ranges from 1-1/4" to 2"(32mm to 50mm).
