9333A

Finishes available: PC, BRN

Specifications: 60mm backset

Functions available: Double cylinder

Packagings available: Box

Materials: Steel

Keyways available: Yale, 3 keys

Classifications: Standard security rimlock

graphic of dimension

Installation Instructions

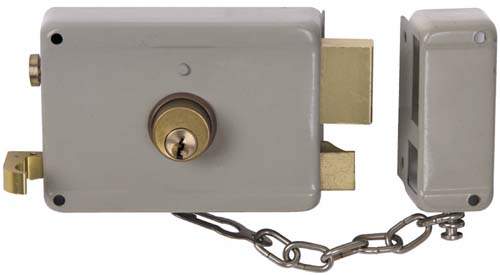

* A standard duty double cylinder security rimlock for exterior wood and metal door.
* 1/2"(13mm) bevel latch controlled by handpull, and can be held at retracted position by push button.
* Steel lock case painted in prime coat or other colors.
* 3-throw deadbolt of 1-1/4"(32mm) extension operated by key from both cylinders.
* 2-3/8"(60mm) backset.
* Reversible for left or right hand doors.
* Provided with chain to prevent unexpected forceful entry.
* Yale keyway as standard, other keyways optional.
