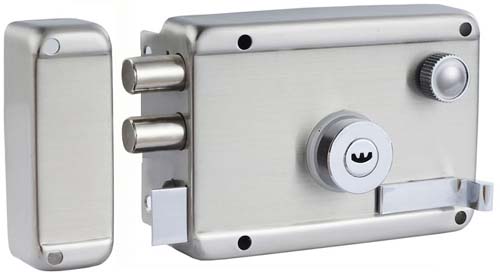

9331SS

9331

Finishes available: SS

Specifications: 60mm backset

Functions available: Double cylinder

Packagings available: Box

Materials: Stainless steel

Keyways available: Yale, Kaba, Cross, Dimple, E-type

Classifications: Standard security rimlock

graphic of dimension

Installation Instructions

* A standard security rimlock for exterior wood and metal door.
* Supplied with dimple key cylinder as standard. Other cylinder types optional.
* Lock case in stainless steel as standard. Other materials such as brass or steel optional.
* Turn button holds bevel latch in retracted or extended position, independent from key operations.
* Solid brass bevel latch of 1/2"(12mm) extension, activated by key outside and inner slide button.
* 7/8"(20mm) twin deadbolts activated by key from outside or inside.
* Advisable to specify handing, but applicable to different handing.
* Door thickness ranges from 1-3/16" to 2"(30mm to 50mm).
