607ETW7
607
Finishes available: PB, AC, AB, SB
Specifications: 60/70mm backset
Functions available: ET, BK, PS, SR, PT, DT
Packagings available: Box, clamshell
Materials: Wood, brass
Keyways available: Yale, Kwikset, Schlage, Lockwood, Weiser
Classifications: Tubular knobset





graphic of dimension
Installation Instructions

Product

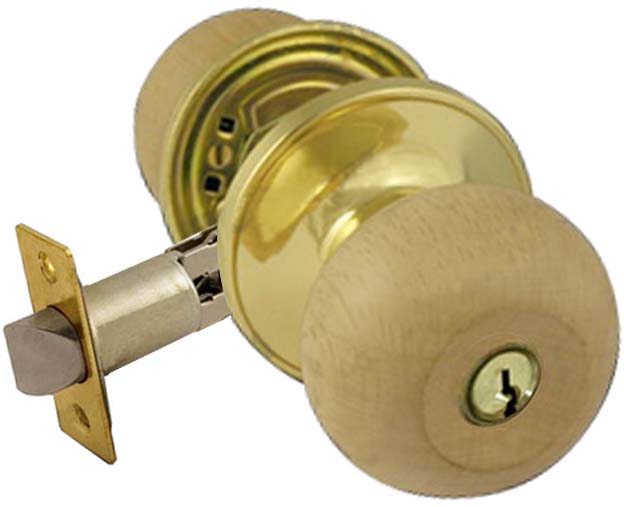

* A tubular knobset of a Weiser type structure, an easy to install product for residential use.
* Guaranteed for 150,000 life cycles.
* Beech wood for knobs, other materials such as maple and peach wood optional.
* 5 pin tumbler cylinder, brass plug with 3 nickel-plated brass keys.
* 1/2"(12mm) throw latch. Dead locking for keyed function.
* 2-1/4"(57mm) strike as standard.
* Backset adjustable between 2-3/8" and 2-3/4" (60 and 70mm). 4 way drive-in latch optional.
* Door thickness ranges from 1-3/8" to 2-3/16"(35mm to 55mm). Extra thickness up to 2-9/16"(65mm) optional.
* Functions available in Entrance, Privacy, Passage, Storeroom, Classroom, Double Cylinder and dummy.
* Finish available for PB, AC, AB, CP, SC, SN and others.
