6872ETPB
6872
Finishes available: PB, AC, AB, SB, SC, SN, CP
Specifications: 60/70mm backset
Functions available: ET, BK, PS
Packagings available: Box, clamshell
Materials: Brass
Keyways available: Kwikset
Classifications: Kwikset Type Tubular knobset





graphic of dimension
Installation Instructions

Product

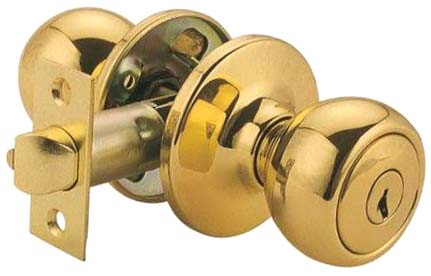

* A tubular knobset of a Kwikset type structure, an easy to install product for residential use.
* Guaranteed for 150,000 life cycles.
* Zinc die cast chassis and cylinder housing.
* Available in Kwikset type keyway with 5 pin tumbler.
* Backset adjustable between 2-3/8" and 2-3/4" (60 and 70mm). 4 way drive-in latch optional.
* Door thickness ranges from 1-1/4" to 2"(32mm to 50mm). 1/2"(12mm) throw latch. Dead locking for keyed function.
* 2-1/4"(57mm) strike as standard.
* Handing reversible, but advise to specify left or right hand doors for keyed function.
* Finish available for PB, AC, AB, CP, SC, SN and others.
* Functions available in Entrance, Bathroom, and Passage.
